【Application】:Suitable for coating treatment of organic fertilizers and compound fertilizers.

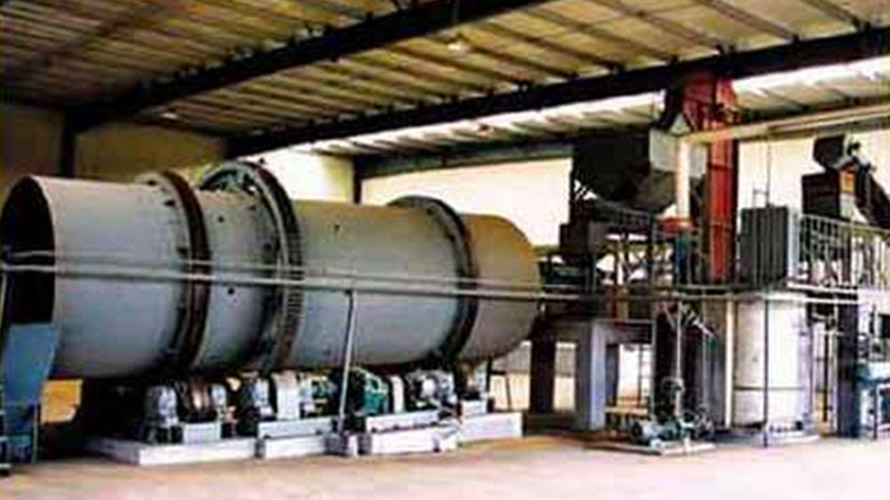

Rotary drum coating machine (coating machine) is to solve the problem of granular compound fertilizer caking and with special design, easy to moisture absorption. The equipment can use a uniform coated surface with protection film in granulate fertilizer. Which is control the surface of fertilizer special situation about salt bridge and moisture condition effectively. So the machine solves the problems of caking for chemical fertilizer and organic fertilizer. Rotary drum coating machine equipment components by mixing ingredients tank, oil pump, and rotary machine. According to the requirements of the powder coating process of powder or liquid. The structure made a special design that make fertilizer uniform particles, and lead into protective film in the surface of fertilizer. The purpose of preventing agglomeration in the process of compound fertilizer is stored.
The coated fertilizer pellet into the coating machine, and atomized spray into the coated materials, along with the roller rotation and granulated fertilizer with non-uniform curve lining plate rolling, the mutual friction, extrusion, glue coating, coated material evenly coated in the fertilizer particle surface gradually, complete fertilizer coating process, discharging from coating machine.
| Model | Diameter | Length | Dip angle | Rotation speed | Capacity | Inlet temperature | Outlet temperature | Power |
|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | （°） | （r/min） | （ton/hr） | （℃） | （℃） | （kw） | |
| DLLQ0608 | 600 | 8000 | 3 | 5 | 0.2-0.6 | 150-250 | 60~80 | 3 |
| DLLQ0808 | 800 | 8000 | 3 | 5 | 1-1.5 | 150-250 | 60-80 | 4 |
| DLLQ1010 | 1000 | 10000 | 3 | 5 | 1.5-2.5 | 150-250 | 60-80 | 5.5 |
| DLLQ1212 | 1200 | 12000 | 3 | 5 | 2.5-5 | 150-250 | 60-80 | 7.5 |
| DLLQ1515 | 1500 | 15000 | 3 | 5 | 3-10 | 150-250 | 60-80 | 11 |
| DLLQ1616 | 1600 | 16000 | 3 | 5 | 6-8 | 150-250 | 60-80 | 18.5 |
| DLLQ1818 | 1800 | 18000 | 3 | 5 | 11-20 | 150-250 | 60-80 | 18.5 |
| DLLQ2020 | 2000 | 20000 | 3 | 4 | 15-25 | 150-250 | 60-80 | 22 |
The equipment can use a uniform coated surface with protection film in granulate fertilizer. The result is control the surface of fertilizer special situation about salt bridge and moisture absorption effectively. Rotary drum coating machine has some special design according to the requirement on the internal structure, which is a kind of efficient equipment for organic fertilizer and compound fertilizer equipment.
