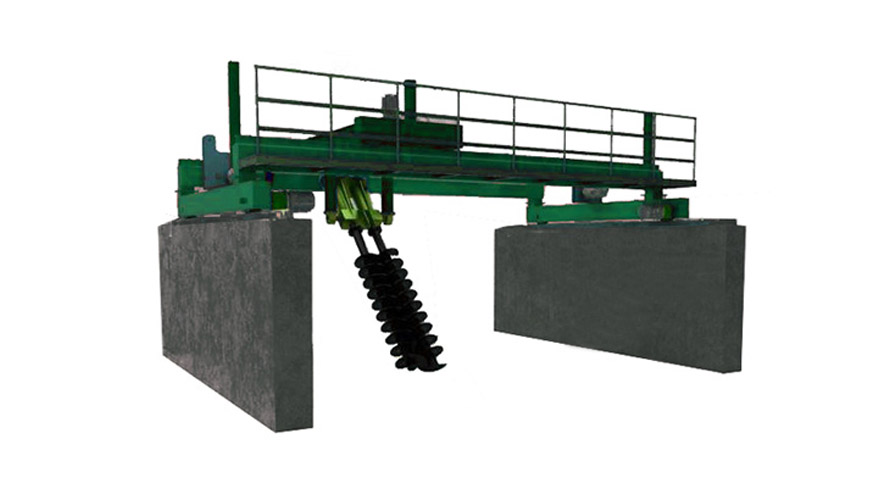

Organic Fertilizer Double Spiral Turning Machine

  • 【Capacity】: 3-5 t/h
  • 【Dried Material Moisture】:<12%

【Application】:It is suitable for the fermentation and turning of organic waste such as livestock and poultry manure, sludge garbage, sugar factory filter mud, residue cake and straw sawdust.

Introduction & Principle

The organic fertilizer double screw turning machine needs to prepare raw materials when making fertilizer, and some auxiliary materials must be added. The main raw materials and various auxiliary materials that are roughly stacked together in proportion can be mixed evenly by relying on the compost turner to achieve the effect of granulation by the granulator. When the pile turner is operating, the raw material pellets are fully contacted and mixed with the air, and a lot of fresh air can be cultivated in the pile, which helps aerobic microorganisms to actively generate fermentation heat and the pile temperature rises. When the temperature is high, the supply of fresh air It can lower the temperature of the pile. Forming a high-temperature exchange shape, various beneficial microorganisms develop and multiply in the temperature range to which they are adapted.

Double Spiral Turning Machine Working Principle

The organic fertilizer double-helix turning machine can process the materials into small clumps, making the viscous and dense pile of raw materials loose and elastic, forming appropriate porosity. The raw materials of the compost turner have suitable moisture content for fermentation, and the moisture content of the finished compound fertilizer should be below 20%. During fermentation, biochemical reactions will generate new water, and the consumption of raw materials by microorganisms will also cause the water to dissolve the carrier and be freed. Therefore, as the moisture is reduced in time during the fertilizer making process, in addition to evaporation caused by heat conduction, the turning of raw materials by the compost turner will cause forced water vapor distribution.

Parameters

WhatsApp/Wechat:+86 15333718778
Model Device Spanmm Thickness(mm) Powder(kw) Walk speed(m/min) Turnover amount(m³/h) Speed(m/min)
FDJ-2000 2000 800 4.0*2+3.0 0-2(adjust) 50-100 50-60
FDJ-3000 3000 800-1000 5.5*2+3.0 0-2(adjust) 80-120 50-60
FDJ-4000 4000 800-1000 11.0*2+3.0 0-2(adjust) 100-150 50-60
FDJ-6000 6000 800-1200 30.0*2+4.0 0-2(adjust) 150-300 50-60
FDJ-8000 8000 1200-1500 30.0*4+5.5 0-2(adjust) 200-400 50-60

Advantages

E-mail us: dingli@dlbio-dryer.com

Performance features:

The new double-screw pile turner includes a traversing device, a traveling device and a pile turning device. The pile turning device includes two reducers fixed on the frame, a spiral shaft connected to the respective reducers through couplings and fixed with spiral blades. , this utility model compost turner has the characteristics of improving the fermentation rate, rapidly decomposing compost, preventing the generation of odor, and shortening the fermentation time.
