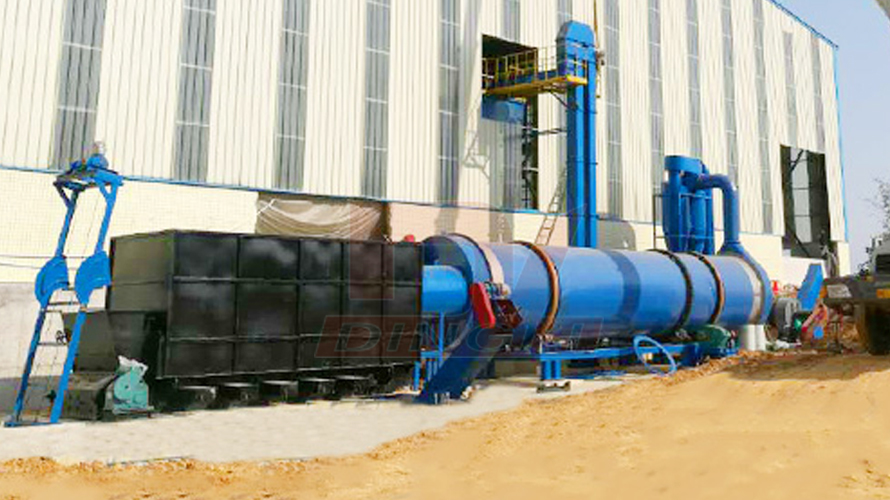

Paddle Stirring Drum Rotary Dryer

  • 【Capacity】: 0.75-5.45 t/h
  • 【Dried Material Moisture】:<20%(adjustable)

【Application】:suitable to drying high-moisture materials that MC is higher than 50%, and the viscosity is relatively low

Introduction & Principle

According to the requirement of the market, Zhengzhou Dingli New Energy Technology Co., Ltd designs and manufactures paddle rotary dryer, which is as known as the paddle-harrow rotary dryer. It is specifically designed according to the problems of traditional rotary dryer. which is not suitable for high-moisture materials that MC is higher than 50%, and the viscosity is relatively low. Meanwhile since the ‘black hole’ phenomenon occurring in the drum lowers the drying capacity and raises the energy consumption. The paddle rotary dryer sets high-speed spinning paddles, strengthening the crushing, and separating function. The crushing effect enlarges the contact surface of particles, which largely increases the heat transfer rate and vaporization rate. According to the practical test, the unit vaporization capacity per hour of paddle rotary dryer is as much as 25-60kg/m2, which is 1-2 times of traditional rotary dryer. The output is raised by 50% and fuel consumption is reduced by 30%. At the same time, the footprint and drying efficiency is raised by 40%. It is applicable for the drying process of high-moisture materials with 50%-85% moisture, such as sludge, bean dregs, starch residue, and sauce residue, spray corn bran, cassava dregs, brewer's grains, distiller's grains, straw, grass, organic fertilizer, chicken beef feces. We also help optimize the drying process according to the property of different biomass materials, production scale, application requirements, cost control, automation level, and site condition.

Material Flow: the crushed materials of which the moisture is about 50%-85% are sent into the roller conveyor to realize downstream drying. Under the effect of the inner shoveling plate, materials are taking and scattered constantly, and move in the spiral forward method. Through three layers (inner, middle and outer layer). The heat exchange is realized between material and hot air.

Parameters

WhatsApp/Wechat:+86 15333718778
Model Input (t/h) Output (t/h) Evaporation Capacity (t/h) Initial Moisture (%) Final Moisture (%) Drying Temperature (℃) Total Power (kw) Total Weight (kg) Plant Area (m²)
DLJG1208 1.82 1.07 0.75 50±5% 15% (Adjustable) 350±30 32 15000 5m*15m
DLJG1408 2.18 1.28 0.9 40 17000 5m*15m
DLJG1610 3.15 1.85 1.3 55 21500 6m*16m
DLJG2010 3.81 2.24 1.57 95 26500 8m*18m
DLJG2010/3 4.76 2.8 1.96 95 26500 8m*20m
DLJG2210/3 5.51 3.24 2.27 100 28500 8m*20m
DLJG2510/3 6.33 3.72 2.61 125 37000 10m*20m
DLJG2512/3 7.6 4.47 3.13 145 41000 10m*22m

Configuration

E-mail us: dingli@dlbio-dryer.com
Paddle Stirring Drum Rotary Dryer结构图 Paddle Stirring Drum Rotary Dryer结构图
